IBC Technology: A New Advancement in the Production of High-Strength PE Film

In today’s modern flexible packaging industry, the quality of the film substrate plays a decisive role in determining the durability, protective performance, and aesthetic appeal of the final packaging product. In particular, for plastic packaging, PE (Polyethylene) film is an essential component. However, not all PE films are created equal. The key difference lies in the production technology.

Today, PE blown film technology equipped with an IBC cooling system is considered a gold standard for producing high-strength packaging. So, what is IBC technology, and what outstanding benefits does it offer? Let’s explore the details in the article below.

1. What Is PE Blown Film Technology?

PE blown film is a manufacturing process in which molten Polyethylene is extruded through a circular die and inflated into a tubular shape—similar to blowing up a balloon—using air pressure. The plastic film tube is then cooled, stretched, and wound into large rolls for subsequent printing, lamination, and bag-making processes.

PE film offers numerous advantages, including high flexibility and toughness, excellent moisture resistance, chemical resistance, and outstanding heat-sealing properties. As a result, PE film is commonly used as the innermost layer of laminated packaging, where it comes into direct contact with the packaged product, particularly in the food, cosmetics, personal care, and agricultural industries.

However, conventional blown film processes often face limitations in controlling temperature and cooling airflow. This can result in uneven film thickness, deformation, or reduced clarity. To address these challenges, IBC technology was developed as a major advancement in the flexible packaging industry.

2. What Is IBC (Internal Bubble Cooling) Technology?

IBC (Internal Bubble Cooling), also known as an internal bubble cooling system, is an advanced technology integrated directly into blown film extrusion lines.

Unlike conventional systems that rely primarily on external air rings to cool the surface of the film bubble, IBC technology uses a system of fans to circulate cooled air, cooling the film bubble directly from the inside as soon as the molten polymer exits the extrusion die.

How Does IBC Technology Work?

An IBC system is equipped with ultrasonic sensors positioned around the film bubble. As the bubble is inflated, these sensors continuously measure its size and diameter. The collected data is transmitted to a central control system, which automatically adjusts the flow of cooling air entering and exiting the inside of the bubble.

This enables the film temperature to be reduced rapidly while maintaining stable internal bubble pressure, resulting in a more consistent and controlled blown film production process.

3. Why Is IBC Technology the "Secret" Behind High-Strength Packaging?

The application of Internal Bubble Cooling (IBC) technology is not simply a technical upgrade. It directly contributes to significant improvements in packaging quality and performance.

Automatic and Uniform Thickness Control

The stability of the film bubble is a critical factor in determining the thickness of the plastic film. With IBC’s intelligent sensing system, the bubble diameter can be precisely controlled, preventing excessive expansion or collapse caused by temperature fluctuations.

By using a modern PE blown film system equipped with IBC technology, manufacturers can achieve highly accurate automatic thickness control. Uniform film thickness minimizes localized weak points and reduces the risk of bursting or tearing in areas where the film may otherwise be excessively thin.

Enhanced Quality and Mechanical Strength

Thanks to rapid cooling from both the inside and outside of the film bubble, the crystallization process of the PE material takes place more uniformly and efficiently. This results in tougher PE film with improved tensile strength and puncture resistance.

This enhanced performance makes IBC-produced PE film a strong protective layer that helps safeguard the packaged products throughout transportation and storage.

Improved Transparency

The rapid cooling provided by the IBC system also helps minimize the formation of large polymer crystals, thereby improving the transparency and gloss of PE film.

This is particularly important for packaging that requires sharp and vibrant print reproduction or incorporates transparent windows that allow consumers to see the product inside.

Optimized Production Costs

Automatic thickness control helps manufacturers significantly reduce raw material consumption during the production process. By minimizing film defects and reducing the need for excessive rejection and recycling, manufacturers can improve material efficiency and optimize overall production costs.

4. Benefits of an Integrated Packaging Production System for Businesses

Many packaging companies today focus primarily on printing and bag-making, relying on external suppliers for PE film. In contrast, having an in-house blown film production system provides significant advantages by giving manufacturers greater control over their raw materials.

When a factory operates a fully integrated production chain—from raw film extrusion and printing to lamination, slitting, and final bag converting—it can control quality throughout the entire manufacturing process.

This level of raw material self-sufficiency, combined with an integrated production system, strengthens production capacity, shortens lead times, and enables manufacturers to efficiently handle large-scale orders. For B2B customers, this also reduces concerns about supply chain disruptions and quality fluctuations caused by dependence on external film suppliers.

5. Trang Tin Packaging – A Pioneer in In-House IBC PE Blown Film Technology

If your business is looking for high-strength packaging that combines outstanding aesthetics with demanding product protection requirements, Trang Tin Packaging Manufacturing Joint Stock Company is an ideal partner.

• A Strong Track Record and Established Reputation: Founded in 1995, Trang Tin has more than 30 years of experience in the flexible packaging industry in Vietnam. Its long-standing presence and continuous development are a strong testament to the company’s reputation, expertise, and manufacturing capabilities.

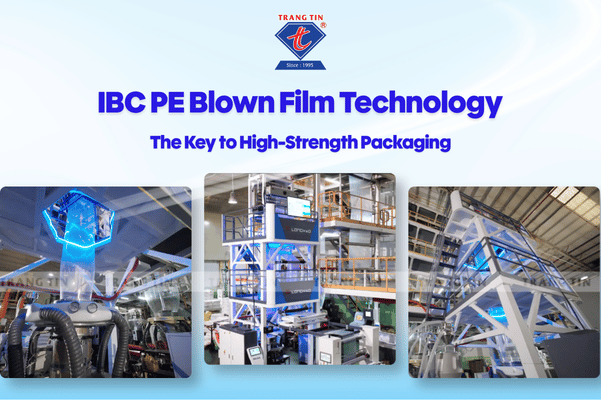

• Integrated Investment in Advanced Technology: In addition to investing in advanced printing and lamination technologies, Trang Tin has established in-house raw material production capabilities with a modern PE blown film system equipped with IBC technology. This enables Trang Tin to provide a wide range of high-quality multilayer laminated film structures tailored to different packaging applications.
• 100% Automated Quality Control: In addition to controlling film quality, Trang Tin’s entire printing process is monitored by an automated inspection system equipped with intelligent cameras and sensors. The system helps detect and eliminate defects such as color deviations, ink smearing, and film imperfections during production.
• Compliance with Strict International Standards: Trang Tin’s products meet a range of stringent international standards, including BRCGS A+, ISO 22000, HACCP, and Halal. Trang Tin Packaging serves not only the domestic market but also exports to demanding international markets such as the United States, Europe, and Japan.
